HYDROPNEUMATIC POWERPACK 3.3CM3
Hydrokit Part Number : PHP1V2003L
Technical information
3.3 cc hydropneumatic unit
1/21 ratio pressure
Nominal continuous pressure 179 bar
Max pressure liquid: 200 bar (without Limiter)

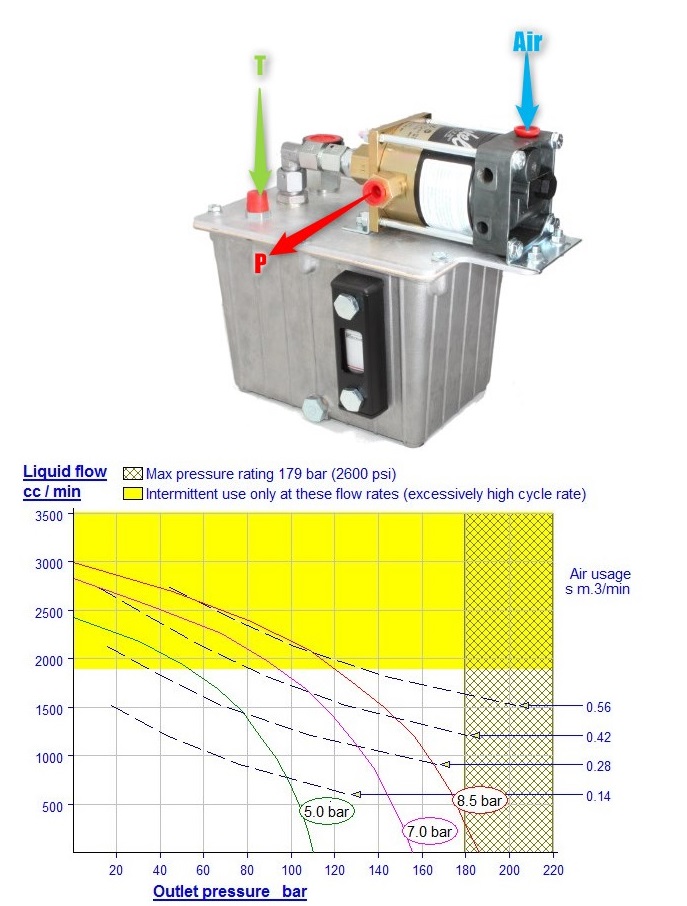

Nominal flow 1.8L / min - max 3L / min (see curve)
Steel body - polyurethane seal
Air inlet pressure: 8.5 bar (mini 1.8 bar)
3L aluminum tank with level and breather.
1/21 ratio pressure
Nominal continuous pressure 179 bar
Max pressure liquid: 200 bar (without Limiter)
Nominal flow 1.8L / min - max 3L / min (see curve)
Steel body - polyurethane seal
Air inlet pressure: 8.5 bar (mini 1.8 bar)
3L aluminum tank with level and breather.
Air-Driven hydraulic pump
