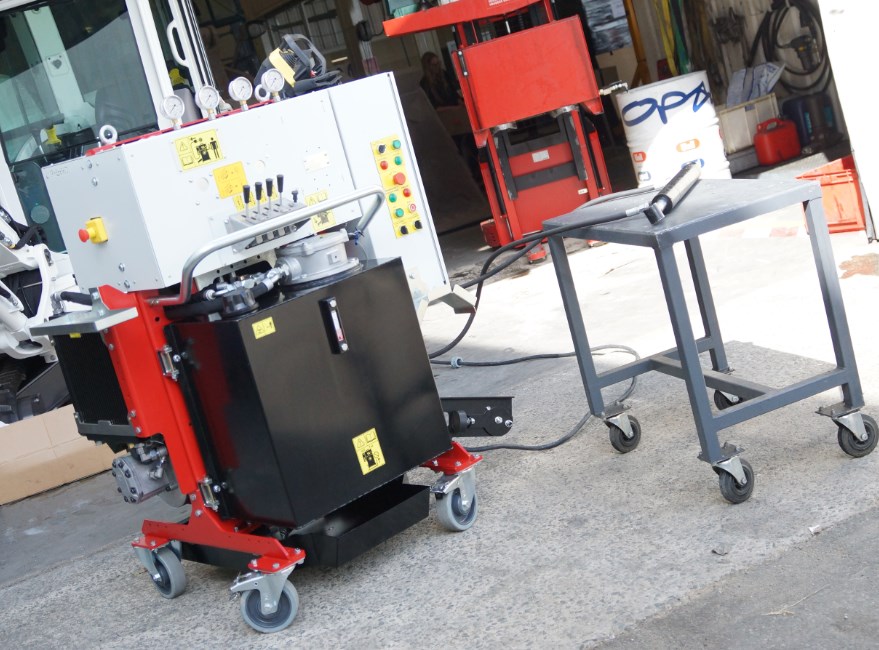

WORKSHOP TESTING POWER UNIT 22KW
Hydrokit Part Number : CHESS22T544FEPV1
Technical information
- 22Kw three-phase motor - progressive start
- Gear pump - 54L/min - 190Bar
- Danfoss PVG16 spool valve - 4 functions single/double acting/Float with manual control
- Full proportional radio control
- ISO-A push-pull valve couplings with connection under pressure on functions 1 to 4
- Free returns: 3 sizes 3/4", 1/2" 1/4" Push-pull valve ISO-A
- 0-250 bar pressure gauge on output A of each function
- 100L tank with filtration and level
- Oil recovery tank
- Trailer light control socket (+ optional radio control for remote control)
- 12V 3 pin power socket
- Oil exchanger 110L/min
- Gear pump - 54L/min - 190Bar
- Danfoss PVG16 spool valve - 4 functions single/double acting/Float with manual control
- Full proportional radio control
- ISO-A push-pull valve couplings with connection under pressure on functions 1 to 4
- Free returns: 3 sizes 3/4", 1/2" 1/4" Push-pull valve ISO-A
- 0-250 bar pressure gauge on output A of each function
- 100L tank with filtration and level
- Oil recovery tank
- Trailer light control socket (+ optional radio control for remote control)
- 12V 3 pin power socket
- Oil exchanger 110L/min
