DIAPHRAGM ACC 330B V0=0.6L P0=40B
Hydrokit Part Number : AM0600401Y
Technical information
ACCUMULATOR 0.6L
INFLATION 40B
CONNECTION G1 / 2

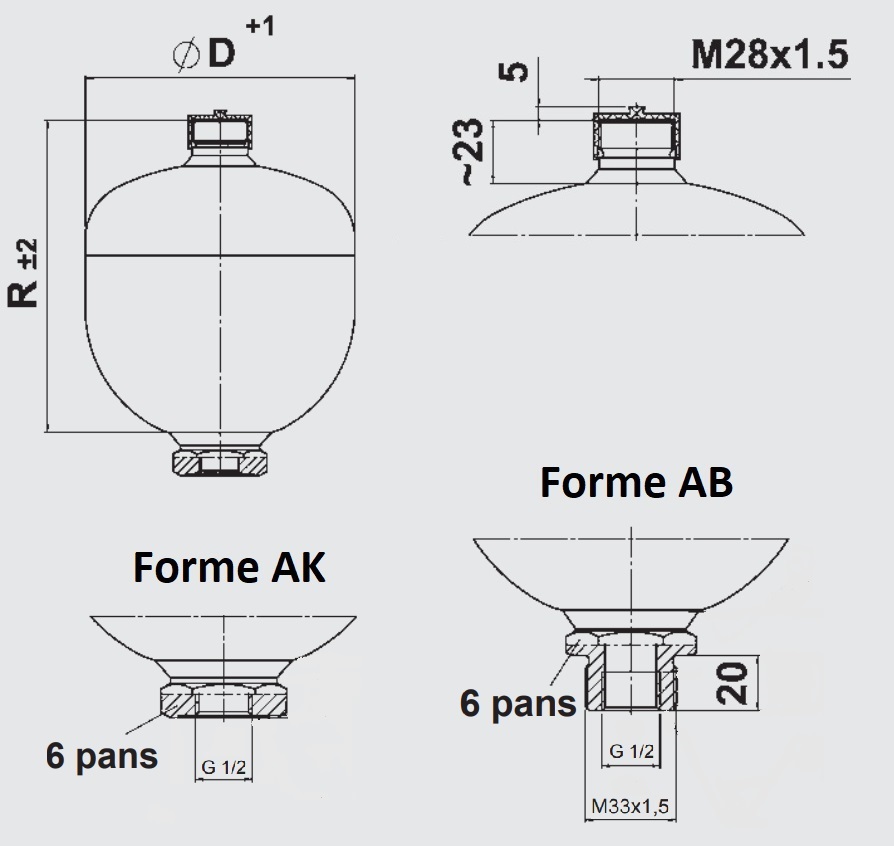

Ø 115MM
LENGTH 151MM
SBO330-0,6E1 / 112U-330AK040
INFLATION 40B
CONNECTION G1 / 2
Ø 115MM
LENGTH 151MM
SBO330-0,6E1 / 112U-330AK040
Technical data
| Volume (litres) | 0.6 | L | |
| Nitrogen inflation pressure | 40 | bar | |
| Max working pressure | 330 | bar | |
| Fitting shape | Female | ||
| Implantation | G1/2 |
