Hydraulic shuttle valve 10S
Hydrokit Part Number : SCN10S
Technical information
Makes it possible to transmit two signals LS to a pump or double a control.

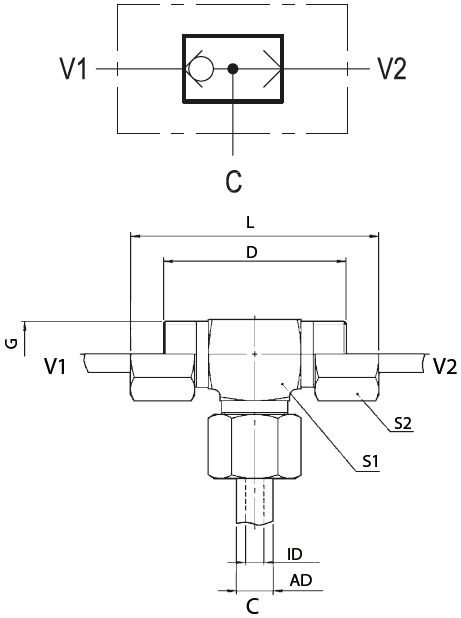

| System C, V1, V2 | G | L | D | AD | ID | S1 | S2 |
| DIN 10S | M18X1.5 | 68 mm | 50 mm | 10 mm | 7 mm | 19 mm | 22 mm |
